產品描述Product description
◆MK02系列是一款專用型線路板組件，當電源突然斷開又恢復時具有斷電重啟保護功能(電子式)，是為了滿足新的歐洲EN60947標準針對角磨類工具零電壓保護的特殊要求而特別設計制造的，廣泛應用于各類手持式電動工具,，如：125和150角向磨光機、拋光機等。
◆MK02 series are one special type PCB Assembly, with restart protection when the power supply is interrupted (Electronics Type), designed specially for angle grinders according to EN60947, fulfill the new requirement for zero voltage protection (or NVR), commonly for used in portable power-tools such as 125mm and 150mm Angle Grinders, Polisher Grinders, etc.
產品特征Features
◆可選帶以下功能 Optional following function types:
→斷電重啟保護功能 Restart Protection(X)
→軟啟動功能 Soft Start Function(S)
→過流保護功能 Over Current Protection Function(CP)
→過溫保護功能 Over Temperature Protection Function(TP)
技術數據Technical data
→電氣耐久壽命 Electrical life endurance≥5E4
→最大電流 Max. current at 250V10A
→最大電流 Max. current at 127V16A
→絕緣電阻 Insulation resistance≥7M Ohm
→基本介電強度 Dielectric strength of function500V
→加強介電強度 Dielectric strength of reinforced500V
→環境溫度 Ambient temperature-25°C~85°C
→阻燃等級 FlammabilityUL 94V-0
→適用于II類防護器具 Suitable for appliances of protection class II

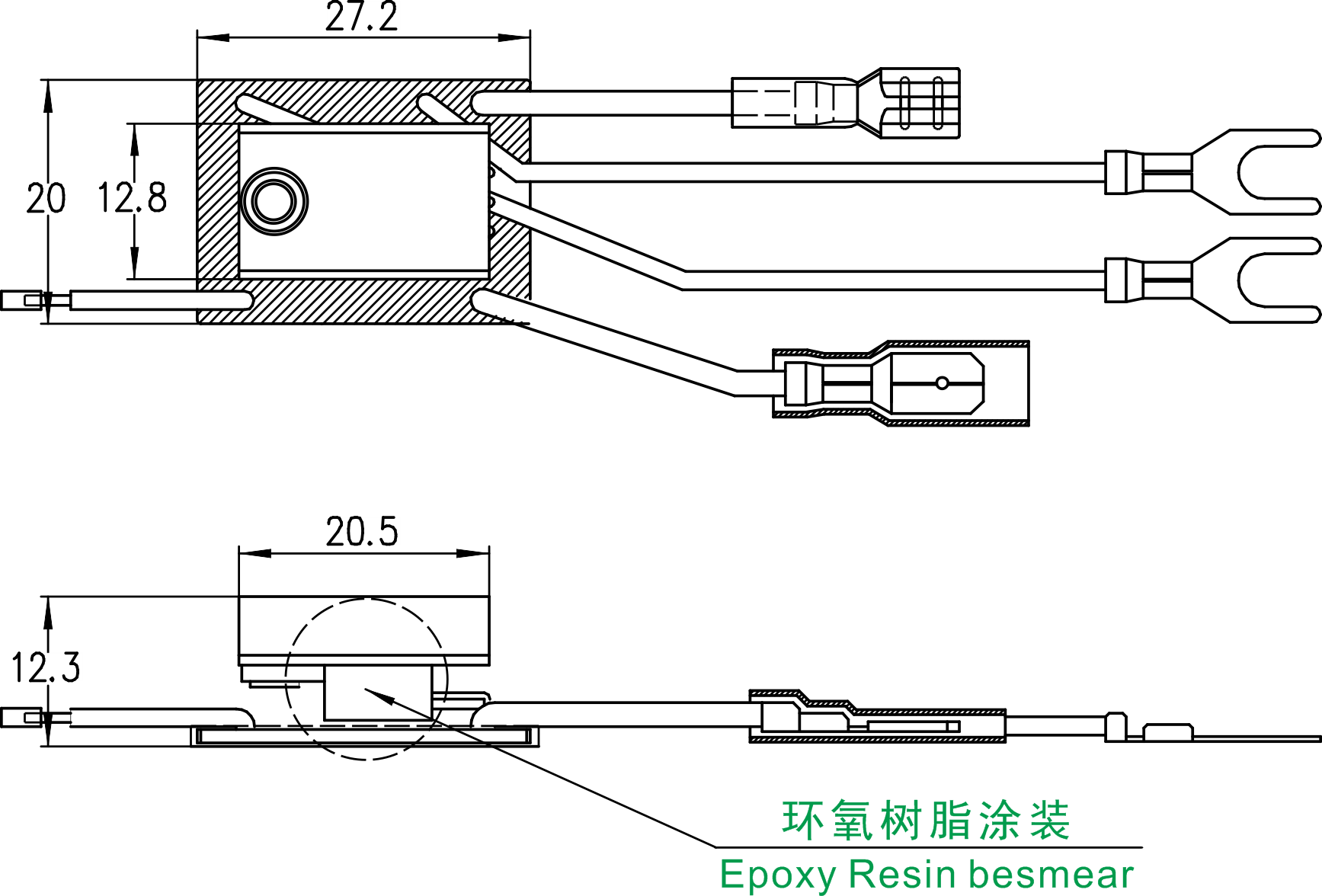

端子類型Terminals
◆輸入端/輸出端 Input side/Output side:
→導線端子 Wire lead terminals
◆線路板信號輸入端 PCB signal side:
→導線端子 Wire lead terminals
電氣參數和認證 Electric Rating and Certification
